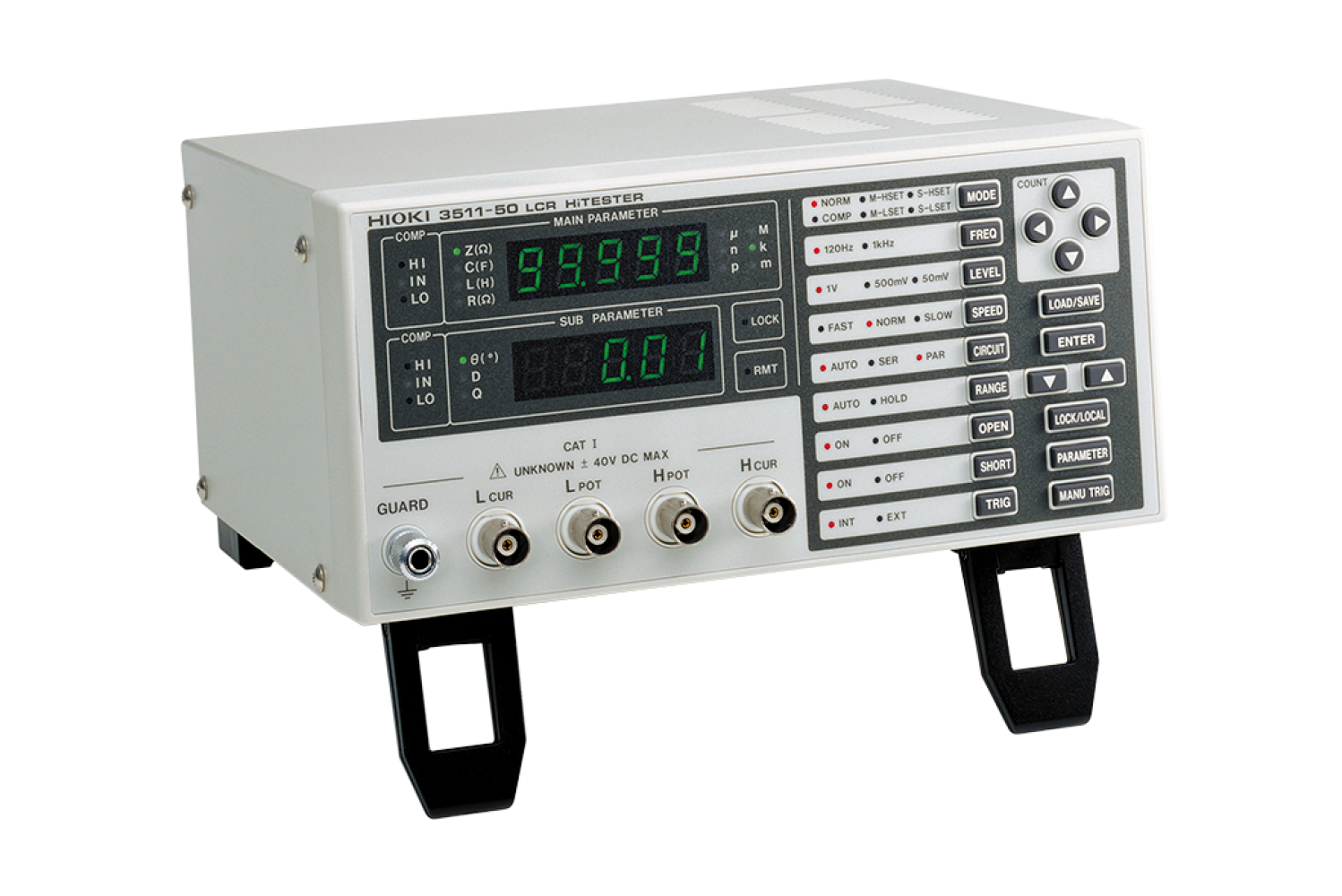

HIOKI 3511-50 LCR HiTester
Compact, dual-band 120 Hz/1 kHz LCR Meter for Integration into Automated Production Lines
Discontinued > HIOKI IM3523 LCR Meter
OVERVIEW
Option
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3511-50 is a compact, general purpose LCR meter for on-board testing of capacitors and coils used in electrical equipment and devices such as automotive-related components.
Key Features
This product is not supplied with measurement probes or test fixtures. Please select and purchase the measurement probe or test fixture options appropriate for your application separately. For an RS-232C connection: A crossover cable for interconnection can be used. You can use the RS-232C CABLE 9637 without hardware flow control.
SPECIFICATIONS
Basic specifications
Accuracy guaranteed: 6 months
ACCESSORIES
Probe and Test fixtures (12)
Note: The 9268-01 cannot use with the 3511-50, using with the 9268/9269, Not CE marked
SMD TEST FIXTURE IM9100
• Direct-connection testing
• Test SMDs with electrodes on the bottom
• DC to 8MHz（Can be measured up to 10 MHz, when combined with the special order model IM3536-01）
• Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
SMD TEST FIXTURE IM9110
• For direct connection two-wire testing
• DC to 1 MHz
• Measurable sample size: 008004 (inch)
CONTACT TIPS IM9901
To replace the tip on the L2001, regular size, bundled with the L2001
CONTACT TIPS IM9902
To replace the tip on the L2001, small size
PINCHER PROBE L2001Learn more
• DC to 8MHz, 50Ω termination
• Tip electrode spacing: 0.3 to 6 mm
• Measurable sample sizes: 0201 to 2220 (inch)
4-TERMINAL PROBE 9140
DC to 100 kHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω
CONNECTION CORD 9165
Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
CONNECTION CORD 9166
Metal BNC to clip, 1.5 m (4.92 ft.) length
TEST FIXTURE 9262
Direct connection type, DC to 8 MHz, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)
SMD TEST FIXTURE 9263
Direct connection type, DC to 8 MHz, Test sample dimensions: 1 mm (0.04 in) to 10 mm (0.39 in)
SMD TEST FIXTURE 9677
Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)
SMD TEST FIXTURE 9699
Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high
PC communication (1)
GP-IB CONNECTOR CABLE 9151-02
2 m (6.56 ft) length
Printer options (2)
RECORDING PAPER 1196
112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set
CONNECTION CABLE 9444
9 pin - 9 pin straight, 1.5 m (4.92 ft) length
Compact, dual-band 120 Hz/1 kHz LCR Meter for Integration into Automated Production Lines
Discontinued > HIOKI IM3523 LCR Meter
OVERVIEW
Option Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3511-50 is a compact, general purpose LCR meter for on-board testing of capacitors and coils used in electrical equipment and devices such as automotive-related components.
Key Features
- High speed measurement: 5 ms (1 kHz) or 13 ms (120 Hz)
- Built-in high-speed comparator
- Measurement frequency: 1 kHz/120 Hz selectable
- From minute measurement with a maximum resolution of 0.001 pF to high-capacity measurement up to 1 F (depending on measurement frequency)
| 3511-50 | Measurement frequencies: 120 Hz and 1 kHz |
This product is not supplied with measurement probes or test fixtures. Please select and purchase the measurement probe or test fixture options appropriate for your application separately. For an RS-232C connection: A crossover cable for interconnection can be used. You can use the RS-232C CABLE 9637 without hardware flow control.
SPECIFICATIONS
Basic specifications
Accuracy guaranteed: 6 months
|
Measurement parameters
|
|Z|, θ, R, C, L, D (tanδ), Q
|
|||||
|---|---|---|---|---|---|---|
|
Measurement range
|
|Z|, R: 10 mΩ to 200.00 MΩ θ: -90.00° to +90.00°
C (at 120 Hz): 9.40 pF to 999.99 mF, C (at 1 kHz): 0.940 pF to 99.999 mF L (at 120 Hz): 14.00 µH to 200.00 kH, L (at 1 kHz): 1.600 µH to 20.000 kH D: 0.0001 to 1.9900, Q: 0.85 to 999.99 |
|||||
|
Basic accuracy
|
|Z| : ±0.08 % rdg. θ: ±0.05°
|
|||||
|
Measurement frequency
|
120 Hz or 1 kHz
|
|||||
|
Measurement signal level
|
50 mV, 500 mV, 1 V rms
|
|||||
|
Output impedance
|
50 Ω
|
|||||
|
Display
|
LED (5-digit display, full-scale count depends on range)
|
|||||
|
Measurement time
|
Fast: 13 msec, Normal: 90 msec, Slow: 400 msec. (at 120 Hz)
Fast: 5 msec, Normal: 60 msec, Slow: 300 msec. (at 1 kHz) |
|||||
|
DC bias
|
DC voltage/DC current can be superimposed on the measurement signal.
(Requires optional unit and external constant voltage source/constant current source.) |
|||||
|
Functions
|
Panel save and load function, Comparator, External input/Output (EXT. I/O), GP-IB (option) or RS-232C interface
|
|||||
|
Power supply
|
Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 20VA max.
|
|||||
|
Dimensions and mass
|
210 mm (8.27 in) W × 100 mm (3.94 in) H × 168 mm (6.61 in) D, 2.5 kg (88.2 oz)
|
|||||
|
Included accessories
|
Instruction manual × 1, Power cord × 1, Spare fuse × 1
|
|||||
ACCESSORIES
Probe and Test fixtures (12)
Note: The 9268-01 cannot use with the 3511-50, using with the 9268/9269, Not CE marked
SMD TEST FIXTURE IM9100
• Direct-connection testing
• Test SMDs with electrodes on the bottom
• DC to 8MHz（Can be measured up to 10 MHz, when combined with the special order model IM3536-01）
• Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
SMD TEST FIXTURE IM9110
• For direct connection two-wire testing
• DC to 1 MHz
• Measurable sample size: 008004 (inch)
CONTACT TIPS IM9901
To replace the tip on the L2001, regular size, bundled with the L2001
CONTACT TIPS IM9902
To replace the tip on the L2001, small size
PINCHER PROBE L2001Learn more
• DC to 8MHz, 50Ω termination
• Tip electrode spacing: 0.3 to 6 mm
• Measurable sample sizes: 0201 to 2220 (inch)
4-TERMINAL PROBE 9140
DC to 100 kHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω
CONNECTION CORD 9165
Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
CONNECTION CORD 9166
Metal BNC to clip, 1.5 m (4.92 ft.) length
TEST FIXTURE 9262
Direct connection type, DC to 8 MHz, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)
SMD TEST FIXTURE 9263
Direct connection type, DC to 8 MHz, Test sample dimensions: 1 mm (0.04 in) to 10 mm (0.39 in)
SMD TEST FIXTURE 9677
Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)
SMD TEST FIXTURE 9699
Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high
PC communication (1)
GP-IB CONNECTOR CABLE 9151-02
2 m (6.56 ft) length
Printer options (2)
RECORDING PAPER 1196
112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set
CONNECTION CABLE 9444
9 pin - 9 pin straight, 1.5 m (4.92 ft) length
