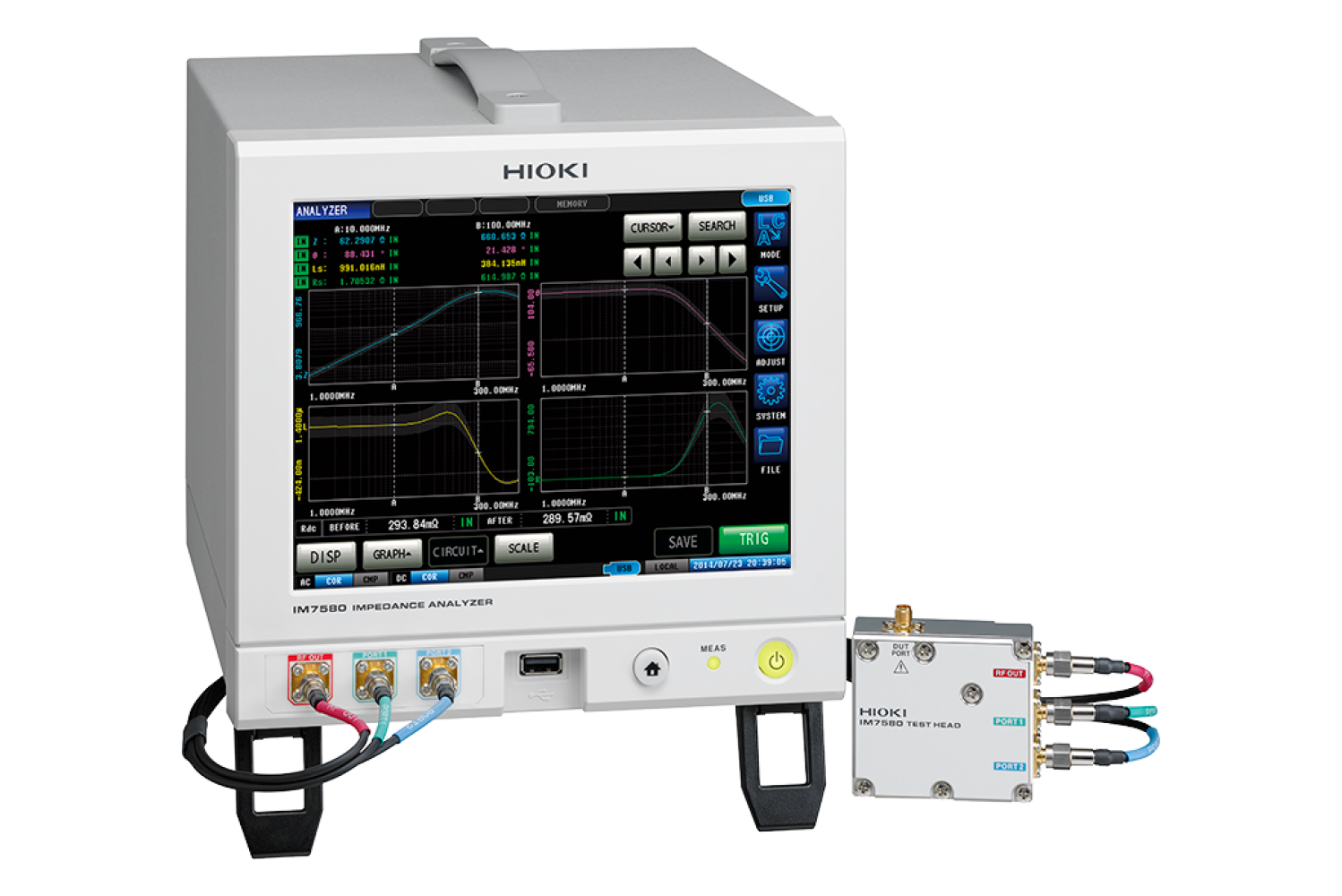

HIOKI IM7580 Impedance Analyzer
1 MHz to 300 MHz Measurement Frequency at High Speeds with Superior Repeatability

Discontinued > HIOKI IM7580A Impedance Analyzer


---

OVERVIEW
 option option

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 1.3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7580 offers a top measurement time of 0.5 ms over a 1 MHz to 300 MHz frequency, and both LCR and Analyzer Modes to meet applications for both high volume production inspections and research and development.

Key Features

• 1 MHz to 300 MHz testing source frequency
• Fastest test speed of 0.5 msec
• ±0.72% rdg. basic accuracy
• Compact, half-rack footprint with space-saving test head
• Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
• Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Model No. (Order Code)

IM7580	Discontinued, Connection cable 1 m is bundled
IM7580-02	Discontinued, Connection cable 2 m is bundled

The instrument does not ship with a test fixture or probe. A test fixture designed specifically for use with the Impedance Analyzer IM7580 is required.


---

SPECIFICATIONS

Basic specifications
Accuracy guaranteed: 1 year


Measurement modes	LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range	100 mΩ to 5 kΩ
Display range	Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 999.999°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy	Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency	1 MHz to 300 MHz (100 Hz to 10 kHz steps)
Measurement signal level	Power: -40.0 dBm to +7.0 dBm Voltage: 4 mV to 1001 mV rms Current: 0.09 mA to 20.02 mA
Output impedance	50 Ω (at 10 MHz)
Display	8.4-inch color TFT with touch screen
Measurement speeds	FAST: 0.5 ms (Analog measurement time, typical value)
Functions	Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces	EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply	100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass	Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz) Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz)
Accessories	Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1



---

ACCESSORIES

Probe and Test fixtures (3)
TEST FIXTURE STAND IM9200
Includes magnifying glass

SMD TEST FIXTURE IM9201Learn more
• For direct connection two-wire testing
• DC to 3 GHz
• 6 measurable sample sizes: 0201 to 1210 (inch)

ADAPTER(3.5mm/7mm) IM9906
3.5 mm (0.14 in) male to 7 mm (0.28 in) conversion

PC communication (4)
GP-IB INTERFACE Z3000
For external control

RS-232C INTERFACE Z3001
For external control

GP-IB CONNECTOR CABLE 9151-02
2 m (6.56 ft) length

RS-232C CABLE 9637
9 pin - 9 pin, cross, 1.8 m (5.91 ft) length
